Description
Parameters

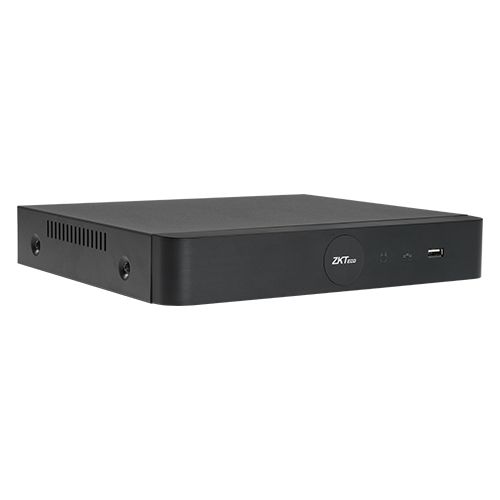

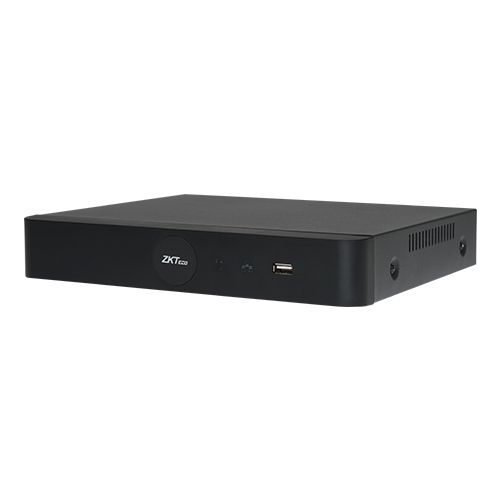

Model: Z8508NEQ-8P
System
Main Processor: Multi-core embedded processor
Operating System: Embedded LINUX
Video and Audio
Max IPC Input: 8CH
Two-way Talk: Support
Audio Compression: G.711u
Live View
Display Split: 1 / 4 / 6 / 8 CH
Resolution: 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) / 1MP(1280*720) / D1(1024*768)
Live View Capability: 1CH@5MP / 8CH@D1 (25/30fps)
Recording
Video Compression: H.265 / H.264
Recording Resolution: 5MP / 3MP / 1080P / 960P / 720P / D1 / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Max. Decoding Capability: 8CH@5MP(25/30fps)
Incoming Bandwidth: 60 Mbps
Bit Rate
Main Stream: 16Kbps ~ 8192Kbps
Sub Stream: 50Kbps ~ 700Kbps
Record Mode: Schedule, Manual, Motion Detection, IVA Events Alarm
Record Interval: 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Playback and Backup
Playback Channel: 4-channel real-time playback synchronously
Search Mode: Time / Date, Alarm Types, IVA Search
Playback Function: Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide / ShowTime Bar, Backup, Snapshot, Full Screen
Backup Mode: USB Device / Network Remote
IVA Alarm
Local IVA Functions: Tripwire / Target Counting / Counting Statistics / Object Left / Lost / Intrusion
Regular Detection: Motion Detection / Video Shelter / Video Loss
AI Search: Support search target video by multiple intelligent conditions
Network
Network Protocol:TCP / IP, UDP, HTTP, DDNS, SMTP(SSL), DHCP, RTSP, NTP, P2P
Max. Online Users: 20
Web Browser: Internet Explorer / Microsoft Edge
ANR: Support (Automatic Network Replenishment)
Operation System: Windows
Management Platform: AntarVis 2.0
Mobile Application: AntarView Pro+ (iOS & Android)
P2P Cloud Service: Support
Interoperability: ONVIF Profile S, SDK, CGI, API

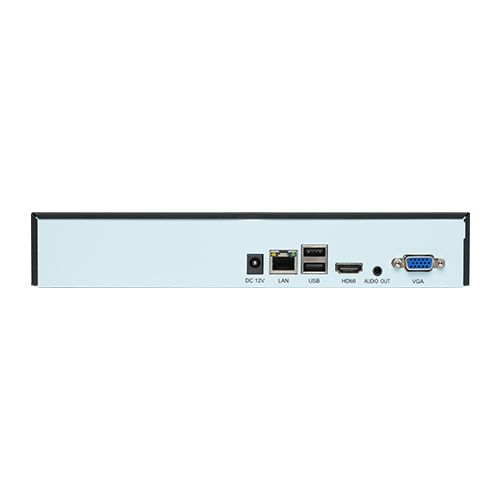

Storage & Auxiliary Interface
SATA Ports: 1 SATA Port, up to 12TB capacity
eSATA: N/A
Raid 0 /1 / 5 / 6 / 10: N/A
HDMI: 1*HDMI(1080P)
VGA: 1920*1080/60Hz, 1280*1024/60Hz
Network Interface: 1 RJ-45 Port (10 / 100Mbps)
PoE Ports: 8 ports
USB: 3*USB 2.0
Audio Input/Output: 0 / 1 output
Alarm Input/Output: N/A
RS-485: N/A
Power
Power Supply: DC 48V / 2.5A
Power Consumption: 24W (without HDD)
PoE ports: 15W for each output up to 250m transmission
General
Casing: 1U
Operating Temperature: -10°C to 55°C / 14°F to 131°F
Operating Humidity: 0% to 90% RH (Non-condensing)
Dimensions (L*W*H): 255 * 210 * 43 mm
Net Weight: 2.5 kg (without HDD)
Gross Weight: 3 kg (without HDD)
