Model |
EC10 |
|
Floor Button Control Relay |
10 |
|
Fingerprint Capacity |
3000 |
|
RFID Card Capacity |
30,000 |
|
Event Capacity |
100,000 |
|
Power Supply |
12V DC 1A |
|
Communication to PC |
TCP/IP, RS485 |
|
Communication to EX16 |
RS485 |
|
Number of supported EX16 |
3 |
|
Dimension(L×D×H) |
242mm×95mm×60mm |
|
Net weight |
0.8Kg |
|
Model |
EX16 |
|
Floor Button Control Relay |
16 |
|
Communication to EC10 |
RS485 |
|
RS485 address |
Set by DIP switch |
|
Power Supply |
12V DC 1A |
|
Dimension (L×D×H) |
160mm×106mm |
|
Net weight |
0.2Kg |
EC10 Package B
₦420,615.00
EC10 Package B
- Secure, scalable and versatile
- Elevator Controls and Expansion Boards
Description

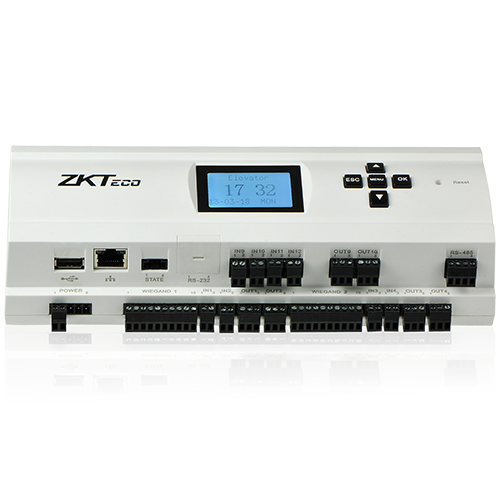

Designed specifically for elevator control, the EC10 panel and EX16 floor extension boards provide customers with the most secure, scalable, versatile, and affordable access control solution available today for elevators.
Floor access can be restricted based on various user credentials, including fingerprint, proximity card and/or password. Predefined time schedules can also be used to control floor access. During normal visitor/business hours, unrestricted floor access can also be permitted (aka Passage mode).
The EC10 Elevator Control Panel can restrict access to up to ten floors. The EX16 Elevator Floor Extension Boards restrict access up to an additional sixteen floors. Each EC10 can support up to three EX16 boards. When combined, a total of fifty-eight (58) floors can be controlled with a single US10 bundle. Note: US10 panels can be daisy-chained together to control as many floors as desired.
Our powerful yet easy-to-use software makes the Elevator Control System very easy to manage. SDK available for software companies wishing to integrate the system.
